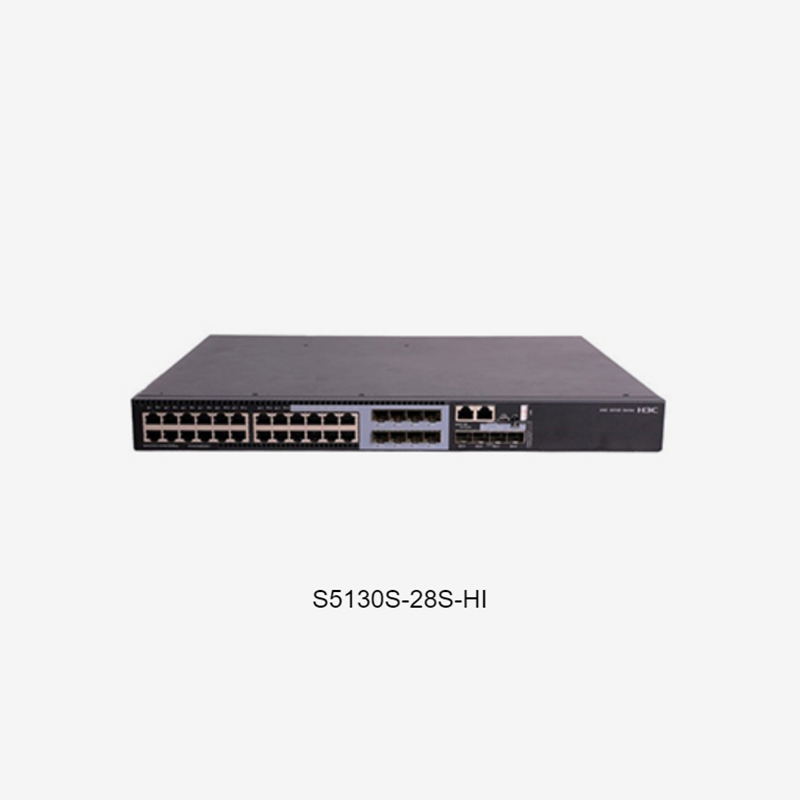

S5130S-28S-HI Ethernet Switch with MTBF Year 174.61 and Forwarding capacity 96Mpps

Name: S5130S28SHI Ethernet Switch with MTBF Year 17461 and Forwarding capacity 96Mpps
Brand: JYTCH
Price: 400.00 USD

Quality S5130S-28S-HI Ethernet Switch with MTBF Year 174.61 and Forwarding capacity 96Mpps wholesale

Products Status : Stock

Ports : 24

Transmission Rate : 10/100/1000Mbps

Function : LACP, Stackable, VLAN Support

Communication Mode : Full-Duplex & Half-Duplex

Switch Capacity : 128Gbps

Brand Name : JYTCH

Model Number : S5130S-28S-HI

Place of Origin : Beijing, China

Product Name : S5130S-HI Serries High Performance Ethernet Switch S5130S-28S-HI

Port Switching capacity : 128Gbps

Box Switching capacity : 336Gbps

Forwarding capacity : 96Mpps

Dimensions (W * D * H) : 440*360*43.6

Weight : ≤6kg

Front panel data ports : 24 x 10/100/1000BASE-T Ethernet ports

MTBF(Year) : 174.61

Jumbo frame : Supported

Feature : S5130S-28S-HI

Packaging Details : box

Port : Beijing

Supply Ability : 10000 Set/Sets per Month

MOQ : 2 sets

Price : $400.00/sets >=2 sets

Contact Now

Products Description

H3C S5130S-HI Switch Series – A robust (modular dual power), cost-effective and easy to deploy access switching solution with POE+ that offers enhanced security and 10GbE uplinks, static route, RIP ,OSPF, SDN and IRF enabled, flexible management.

S5130S-28S-HI Ethernet Switch with MTBF Year 174.61 and Forwarding capacity 96Mpps

Feature	S5130S-28S-HI	S5130S-52S-HI	S5130S-28S-PWR-HI	S5130S-52S-PWR-HI
Port Switching capacity	128Gbps	176Gbps	128Gbps	176Gbps
Box Switching capacity	336Gbps
Forwarding capacity	96Mpps	132Mpps	96Mpps	132Mpps
Dimensions (W × D × H)	440×360×43.6	440×360×43.6	440×460×43.6	440×460×43.6
Weight	≤6kg	≤6.5kg	≤8.5kg	≤9.5kg
Front panel data ports	24 x 10/100/1000BASE-T Ethernet ports, (including 8 combo ports), 4 x 10G/1G BASE-X SFP+ ports	48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports	24 x 10/100/1000BASE-T Ethernet ports, (including 4 combo ports), 4 x 10G/1G BASE-X SFP+ ports	48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports
Console port	1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports.
MTBF(Year)	174.61	151.28	89.35	61.87
Feature	S5130S-28C-HI	S5130S-52C-HI	S5130S-28C-PWR-HI	S5130S-52C-PWR-HI
Port Switching capacity	128Gbps	176Gbps	128Gbps	176Gbps

More Products

NETWOK ROUTER

NETWORK SWITCH

FIREWALL

MODLES

WIERLESS AC

WIERLESS AP

Company Profile

Certifications

Product packaging

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc

S5130S-28S-HI Ethernet Switch with MTBF Year 174.61 and Forwarding capacity 96Mpps Images
